Virgin 737 flew untracked for 27 minutes after air traffic control incorrectly thought aircraft was headed for Newcastle

written by australianaviation.com.au | March 20, 2015

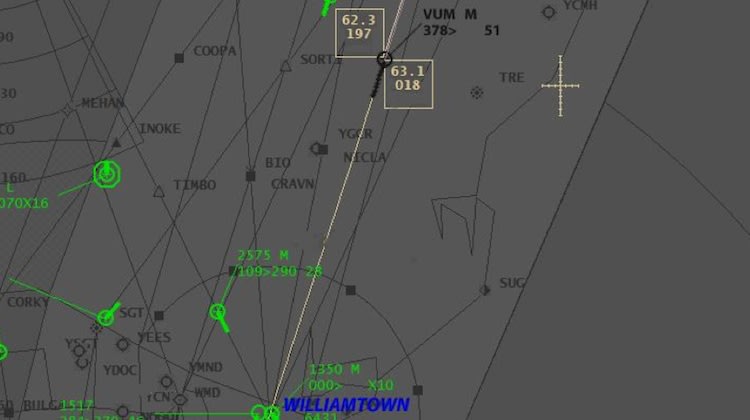

VH-VUM just before it was "inhibited" on air traffic control screens. (ATSB)
VH-VUM just before it was “inhibited” by air traffic control. (ATSB)

A Virgin Australia Boeing 737-800 flew untracked for 27 minutes on its way from Sydney to Brisbane after air traffic controllers mistakenly assumed the flight was headed to Newcastle’s Williamtown Airport.

The Australian Transport Safety Bureau (ATSB) report into the September 28 2012 incident found Airservices controllers let the aircraft, VH-VUM, fly about 225nm (416.7km) in controlled airspace without any assurance air traffic control would positively separate it from other aircraft in the vicinity.

Just after a handover between controllers had taken place, VH-VUM was “inhibited” on the air traffic control console, meaning it was shown as a black track with limited information provided on the accompanying on-screen label.

Advertisement
Advertisement

“Believing that VUM was destined for Newcastle Airport under Department of Defence air traffic control jurisdiction, the controller erroneously inhibited the flight data record (FDR) for VUM,” the ATSB report said.

“They did not check the aircraft’s callsign or other details prior to inhibiting the FDR.”

This meant that VH-VUM’s FDR registered as a “not concerned” aircraft track and its status remained unchanged as the aircraft passed over Williamtown, flew out of one air traffic control sector and into another.

Controllers were only alerted to VH-VUM’s presence when the flightdeck contacted them and asked if there was a frequency change required as they were nearing Brisbane.

PROMOTED CONTENT

“Due to this ‘not concerned’ status, the controller did not see or interrogate VUM’s FDR for the rest of the time it was under their jurisdiction,” the ATSB said.

“Similarly, the FDR did not attract the attention of two Inverell sector controllers after it entered and crossed their sector until they responded to a frequency change request from the flightcrew of VUM.”

The incident was a “loss of separation assurance”, the ATSB said, given controller separation plans would not consider VH-VUM from that point, and no surveillance control service was being provided to the flightcrew.

“Maintenance of the minimum aircraft separation standards during this period was not assured,” the ATSB said.

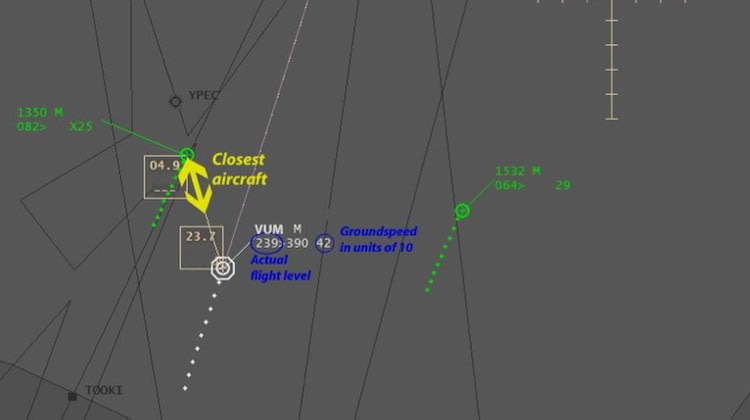

The display of VH-VUM while it was "inhibited". (ATSB)
The display of VH-VUM while it was “inhibited”. (ATSB)

The ATSB said Airservices had changed its training program to include these types of “not concerned” or black track scenarios and to stress the importance of scanning “not concerned” flight tracks.

The scenarios would also be included in operational simulation training where appropriate.

“There was low awareness among the controllers of the potential impact of black ‘not concerned’ tracks in an en route airspace environment,” the ATSB said.

“Emphasis on that possibility through training can provide controllers with the ability to better deal with the situation should it arise again.”

Also, the ATSB noted implementation of the proposed joint civil and military air traffic management system – dubbed Onesky – would increase air traffic management interoperability between Airservices and the Department of Defence.

Steer your own in-flight experience – available on print and digital Whether our classic glossy magazine in your letterbox, daily news updates in your inbox, peeling back a few layers in the podcast or our monthly current affair reports, you can count on us to keep you up to date. Sign up today for just $99.95 for more exclusive offers here. Subscribe now at australianaviation.com.au.

8 Comments

  • Damian

    says:

    Is it just me or does anyone else find it concerning that these investigations seem to take so long to conclude? This is the second article on AA in the last few days about incidents from second half of 2012. Whilst I appreciate draft reports are often issued and these things should not be overtly rushed, 2.5 years for reports that involve no ‘bent metal’, injuries or fatalities and the relevant information and personnel involved would seem to be readily available does make one wonder if more resources are required? Perhaps I’m missing something or don’t fully understand the process?

  • Lucas

    says:

    What’s more concerning is that the two latest incidents have occurred in the vicinity if Williamtown. I have flown there several times and find it astonishing at the lack of standardisation in military controllers.

  • Adrian

    says:

    I quite agree 2.5 years is stretching it a bit.
    It also demonstrates that a MH370 type incident is possible in Australia.
    Perhaps the ATC software needs reviewing to not allow inhibiting of an aircraft in a controllers sector.

  • Ramki

    says:

    Add me, Damian ….

  • Raymond

    says:

    Damian +1.

    A good question well put.

  • Smej

    says:

    A delayed public report doesn’t necessarily mean lack of immediate remedial action by the necessary agencies and for Lucas please don’t confuse lack of standardisation with capability and flexibility of RAAF controllers who in the above case may not be involved.

  • Raymond

    says:

    Smej, fair enough, but as Damian says, 2.5 years for a report that involves no ‘bent metal’, injuries or fatalities and where the relevant information and personnel involved would seem to be readily available, does appear a little long in the tooth…

  • Kieran

    says:

    Lucas – as the report mentions the flight was from Sydney to Brisbane and under the control of Airservices controllers not military controllers
