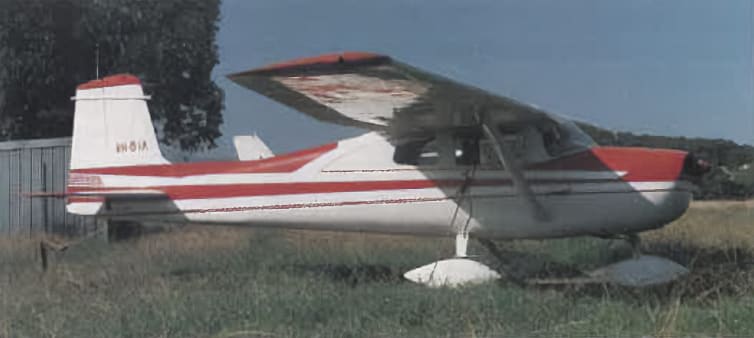

The Differences Between the Early and Late Model Cessna 150s Can Be Easily Seen Here.
From the Cockpit — Cessna 150 and 152
Cessna 150 and 152
This month, From The Cockpit takes a look at the Cessna 150 and 152, the aircraft sometimes nicknamed the ‘Tiny Tinny’ and one which has been responsible for the initial flying training of countless pilots over nearly four decades. Produced in massive numbers, the 150 and 152 have proved to be very popular in Australia and just under 500 were on the Australian Civil Register in mid 1996, behind only the Cessna 172 and 182 and Piper Cherokee family. In terms of numbers produced the most successful civil two seat trainer ever built, the Cessna 150 marked the company’s return to that market after an absence of six years following the cessation of production of the early postwar 120 and 140 series of tailwheel light aircraft. The prototype of the strut braced, high wing, all metal and tricycle gear 150 made its first flight in September 1957 and after certification testing entered production in August 1958, remaining available until replaced by the Model 152 19 years later. The 150 was powered by the 100hp (75kW) Continental O-200-A horizontally opposed four cylinder engine throughout its production life, although the airframe was continually updated and the aircraft’s external appearance and detail specification changed considerably over the years. The 150 was sold in Standard, Trainer and Commuter forms, each model differing in the level of standard equipment installed. As originally offered, the 150 featured a 680kg (1500lb) maximum takeoff weight, unswept vertical tail surfaces and a conventional rear cabin design which lacked the ‘wraparound’ rear window feature which distinguished later models. Sales were immediately strong with over 1018 built in the first two years. The first refined version was the 150A of 1961, differing in its slightly larger rear cabin windows and main undercarriage moved 5cm (2in) further aft. The 150B of 1962 had a larger propeller spinner and new wing tips while 1963’s 150C had reshaped wheel speed fairings and an optional aft ‘family seat’ for one or two children with a maximum combined weight of 36kg (80lb).
A New Look
A major redesign came with the 150D of 1964 with its cut down rear fuselage decking and ‘wraparound’ rear window — 360 degree ‘Omni-Vision’ according to Cessna’s marketing people and an increase in maximum weight to the definitive 725kg (1600lb). Although the flight test engineers weren’t too keen on the new styling (it cost about 5 knots [9km/h] of speed) the buyers loved it, production of this model nearly doubling its predecessor. The 1965 150E was similar apart from some interior refinements, while the 1966 150F introduced several changes including a swept back fin and rudder, redesigned wingtips, enlarged cabin doors, upgraded wheels and brakes and electric flaps. These extra features plus the fact that the 150F was sold at a price considerably below that of the 150D resulted in a sales boom, no fewer than 3087 examples being delivered during the course of 1966. This massive increase in production (aided by the fact that Cessna’s worldwide dealers had to take delivery of a certain number of aircraft) had direct consequences for Australia’s light aircraft industry, with Victa and others applying for tariff protection against Cessna’s ‘dumping’ policy. Assistance was refused, so Victa left the light aircraft manufacturing industry after building 170 two seat Airtourers and a prototype four seat Aircruiser. In France, licence production of the 150 by Reims Aviation (the former Max Holste company and 49% owned by Cessna) began in 1966, a further 100 aircraft adding to an extraordinary annual total. Reims built aircraft were designated the Model F150 with the subvariant suffix added as per the US built aircraft, eg F150F for the 1966 model. Production of the 150 averaged better than 2000 per annum over the next three years and further refined models appeared. The 1967 150G featured a cabin widened by 8cm (3in), a short stroke nosewheel leg, new rubber mountings for the engine cowling and a floatplane option; the 1968 150H had revised flaps and interior and the 1969 150J was similar but with further interior and instrument panel refinements. The next 150 model to introduce major changes was the 150K of 1970 with its conical camber fibreglass wingtips, ground adjustable rudder trim tab and the availability of an aerobatic version, the Model A150 Aerobat. (FA150 when built by Reims Aviation). The Aerobat’s strengthened structure was stressed to load factors of +6g/ -3g, permitting snap, barrel and aileron rolls, spins, loops, chandelles, lazy eights, Immelmann turns, Cuban eights and vertical reversals to be performed. Extra standard equipment on the Aerobat included quick release cabin doors, harness seat belts, seats with removable cushions to accommodate parachutes, tinted overhead skylight windows and a chequerboard paint scheme. Next was the 150L of 1971-74 with a further batch of changes including tubular steel main undercarriage legs, an enlarged dorsal fin fillet, a two piece engine cowling and relocation of the landing light to the nose. The final 150 model was the 150M which remained in production until 1977 when it was replaced by the 152. Featuring a revised fin and rudder design and further redesigned wheel fairings, it brought total production of the 150, A150, F150 and FA150 to 23,840 – 22,082 by the parent company and 1758 in France by Reims. Included in the latter’s total is about 100 FRA150 Aerobats built in the early-mid 1970s and powered by a 130hp (97kW) Rolls-Royce/Continental O-240-A engine, the idea being to liven up the standard Aerobat’s somewhat sluggish performance a little!
This content is available exclusively to Australian Aviation members.
A monthly membership is only $5.99 or save with our annual plans.
- Australian Aviation quarterly print & digital magazines
- Access to In Focus reports every month on our website
- Unlimited access to all Australian Aviation digital content
- Access to the Australian Aviation app
- Australian Aviation quarterly print & digital magazines
- Access to In Focus reports every month on our website
- Access to our Behind the Lens photo galleries and other exclusive content
- Daily news updates via our email bulletin
- Unlimited access to all Australian Aviation digital content
- Access to the Australian Aviation app
- Australian Aviation quarterly print & digital magazines
- Access to In Focus reports every month on our website
- Access to our Behind the Lens photo galleries and other exclusive content
- Daily news updates via our email bulletin
New Engine, New Name
With the lessening availability of 80/87 octane fuel around the world, Cessna, like most other light aircraft manufacturers, in the mid 1970s looked to upgrading its products to use the more readily obtainable 100 octane low lead Avgas. Thus revised, the Cessna 150 emerged as the 152 in 1977, with a 110hp (82kW) Lycoming O-235-L (later 108hp [81kW] O-235-N) engine, more efficient ‘gullwing’ propeller, redesigned fuel system, 28 volt (instead of 12 volt) electrical system, a redesigned engine cowling, flap movement limited to 30 (rather than 40) degrees and an increase in maximum takeoff weight to 757kg (1670lb). An Aerobat version (Model A152) was also introduced and the type was built in France by Reims Aviation as the Models F152 and FA152. As a result of the worsening sales situation affecting all manufacturers in the 1980s, production of the 152 was suspended late in 1985 after 7449 had been built, including 589 in France. This brought total Cessna 150/152 production to 31,289 over a 27 year period. Annual deliveries for the 150 and 152 (including by Reims Aviation) were: 1958 — 122; 1959 — 648; 1960 — 354; 1961 — 344; 1962 — 331; 1963 – 472; 1964 ~ 804; 1965 — 1637; 1966 – 3187, 1967 — 2264; 1968 — 2159; 1969 — 1850; 1970 — 1001; 1972 — 1270; 1973 — 1674; 1974 — 1222; 1975 — 1401; 1976 — 1528; 1977 — 2078 (including 1541 Model 152s); 1978 — 2032; 1979 — 1410; 1980 — 1029; 1981 — 718; 1982 — 317; 1983 — 255; 1984 — 108; 1985 — 116.
Flying And Buying
The first thing that strikes you upon entering a 150 or 152 is the tight confines of its cabin, something which means that it helps if you’re on friendly terms with the person sitting next to you as anyone of only slightly larger than average stature (whatever that is) will be literally rubbing shoulders with his or her companion. Even 150s from the ‘G’ onwards with the widened cabin are a couple of centimetres narrower than a Piper Cherokee. This writer, who is quite tall, simply cannot fly a 150 properly as knees foul the control column, elbows are jammed against the sidewalls, and so on! All that put aside, the 150’s handling has been described as flying like a miniature Skyhawk, which means it’s stable, predictable and safe at low speeds. Like the Skyhawk, it requires a high degree of hamfistedness to get into serious trouble. The flaps are very effective and provoke hefty pitch up when deployed and the low wing loading means the aircraft jumps about quite substantially in all but the lightest air disturbance. The 150 and 152 were intended as trainers, the aircraft’s almost boring handling characteristics bringing up the old debate about what makes a good trainer. Should a trainer have completely benign handling so the student’s risks are minimised, or should it be easy to fly adequately and a bit more difficult to fly well? The 150 and 152 are firmly in the first category, so decide for yourself. With only 100, 108 or 110hp (75, 81 or 82kW), the 150 and 152 are certainly not rocket ships, especially on a hot day, so their usefulness for serious cross country touring is compromised. Flight plan for no more than 100kt (185km/h) for most circumstances and down to as little as 85kt (157km/h) if you’re after economy and have plenty of time on your hands. The lack of power severely limits the Aerobat’s capabilities — “it grudgingly complies” with commands to loop, according to one writer and the rate of roll is modest. A Pitts it ain’t, although the scarce 130hp (97kW) Reims FRA150 model is somewhat more lively. A problem with the 152 created by its switch to 100LL fuel deserves mention. Cessna was much less successful in making this change than other manufacturers and the problems encountered by the 172 in this regard were discussed in the August 1996 From the Cockpit. While the 152’s troubles weren’t quite so bad, they were sufficient with the original high compression O-235-L2C to cause constant problems with lead fouling of the spark plugs. The slightly less powerful O-235-N2C with lower compression was substituted in 1983 to help deal with that, although by then production was in decline with the result that the vast majority of 152s were built with the earlier engine.
How Much?
The following prices reflect a selection of 150s and 152s offered for sale in Australia during the preparation of this article. The fact that the aircraft was built primarily as a trainer means that many will have accumulated many hours of ‘circuit bashing’ by well meaning but generally inept students in the first few hours of their flying careers. There won’t be too many around which haven’t been subject to this, although it doesn’t necessarily mean a bad aeroplane, just one which requires a very close look at its history. Because of this, prices can be quite modest and the aeroplane certainly can offer good value for money if you just want a runabout for local flights. If you’ve got touring in mind, I’d have thought that spending the extra on a faster and more comfortable four seater would be the way to go. The performance tables accompanying this article show some very long range figures for aircraft with optional fuel tanks. That’s all very well, but filling them will mean much reduced payload and who but a raving masochist would want to spend eight or so hours in a 150 anyway? The following prices are in Australian dollars (rounded to the nearest $1000), higher prices generally reflect lower hours and/or plenty of engine and propeller time remaining before overhaul, and a single price means that only one aircraft was noted for sale. The low price of $25,000 noted for the 152 refers to an aircraft with virtually no engine and propeller hours remaining and is not typical. 150F — $34,000; 150G — $21-32,000; 150H — $19-27,000; 150L — $27-29,000; A150L — $32,000; FRA150L — $70,000; 150M — $29-38,000; A150M — $39,000; 152 — $25-55,000. Next month: Beech Bonanza 33 and 36.
